Welcome to Leitax, this is our Rokkor 58/1.2 to Canon EOS page.
I saw in Internet several conversions of this lens using M42 to Canon adapters or donor mounts from other lenses and irreversible surgery. So I decided to make a mount that will allow the use of this extraordinary lens very easily and without any damage.
It is only necessary to remove four screws and exchange the mounts, just one minute work.
I did another improvement over the normal adapters: ours is covering the internals of the lens with a flat black painted rim. No reflexions inside the camera means no flares.
There is a convenient flat surface in our mount to glue an electronic chip if desired. This chip will enable the focus confirmation light in the viewfinder.
Your Canon camera can meter and adjust the correct exposure in A and M modes with adapted Rokkor lenses.
The Rokkor 58/1.2 lenses will focus to infinity and will maintain the aperture click stops.
Rokkor 58/1.2 will hit the mirror of a Canon full frame camera at
infinity, but it is possible to avoid this and achieve infinity focus
at close apertures shaving the lens rear glass housing.

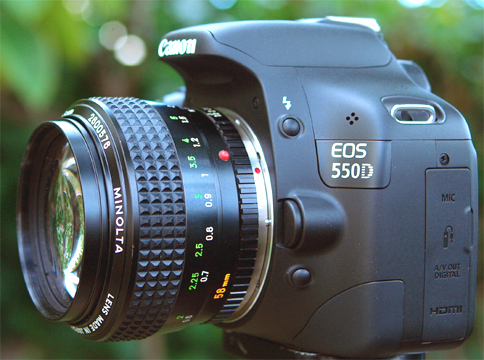

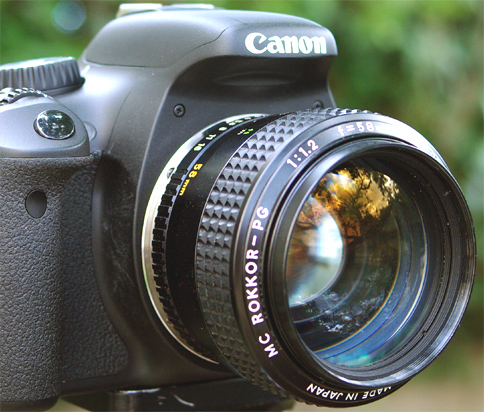

The Leitax mount for Canon fits perfectly in place of the original mount.
Please take a look at these instructions
- This mount can be used to convert the Rokkor 58/1.4 lens without irreversible surgery too.
- Our mount will trigger the AF lever of the Canon 1D series cameras, and, after this happens, the camera needs to install a chip on the Leitax bayonet to work at all. If you wish to use these cameras without a chip, let me know. I will make a special version for you.
You can order the Rokkor-Canon bayonet here:
- Due to strict security, the postal service to the US can take several weeks, US customers please consider the UPS option.

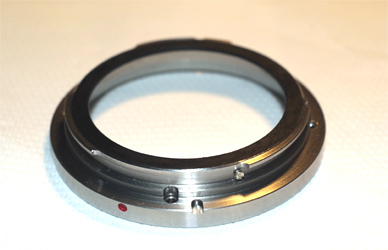

|This is the Canon EOS bayonet
for the Rokkor 58/1.2 lens.
There is no need of special screws, you will use the ones from the lens.
Please take a look at the instructions
|This is the last version of the Dandelion chip for
- Exif data programmable.
- Focus confirm point adjustment.
- Programming instructions
- How to put the chip in program mode
- How to glue the chip.
|You can have your Leitax mount with the Dandelion chip
already glued on it.
This price includes a chip and installation on the Leitax mount of your choice.
|This is the glue I use, it is strong and will not stick your fingers at once.||
|The Leitax template simulates the mirror movement of a
5D or 6D camera.|
With it, you can check if your adapted lens will hit the mirror of your camera without any risk of damage.
|This is our Canon-EF body cap. A Leitax Hermetic
It is made in aluminum for maximum protection, and it has a greased rubber O-ring that will seal the camera from water splashes and dust.
|You may need a generic Canon EOS rear lens cap.||
|But, if you want the best, I can offer now the OP/TECH
-It has a rubber O-Ring that seals the lens from dust and moisture.
-The O-ring also forms tight friction, it will avoid losing the cap.
-It covers the entire bayonet diameter, providing more protection against blows and scratches.
|Out of stock
I use this model I use for the Phillips screws of the Rokkor lenses, it is industrial grade quality made by Irazola, and the design is very good, you can push and turn it firmly with the rotary end and the rubber finish.
shipping cost for UPS courier.
I would need your phone number for the UPS shipping form.
