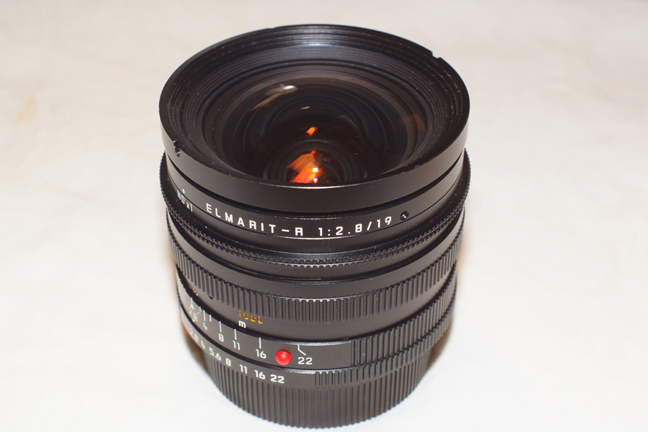

This is the current version of the Elmarit 19/2.8. |
![]() |

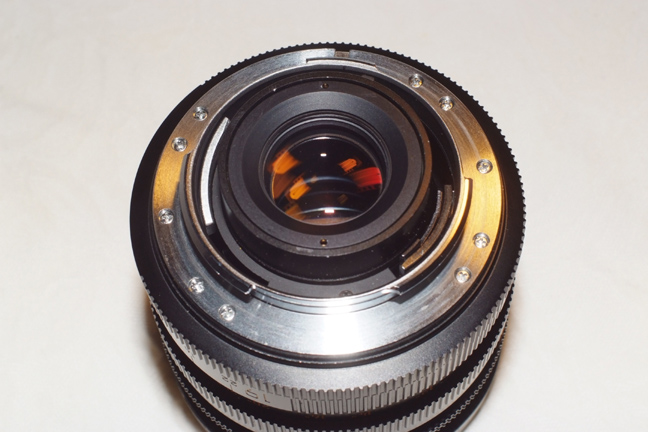

Here you can see the three cams. |
![]() |
First, remove the three black screws, it is very useful to hold the lens upside down at the moment when the screw is going to fall, a soft fabric on the table will avoid you to lose them. If you have a ROM model, please don't unscrew the two contact's strip screws. |
![]() |

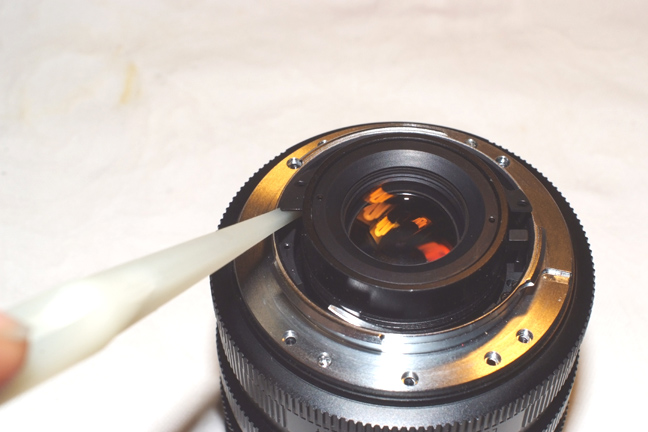

Now, lift the black shroud, better don't use the fingers, you could touch the lens by accident. With the plastic tool, you will not make any scratch . |
![]() |

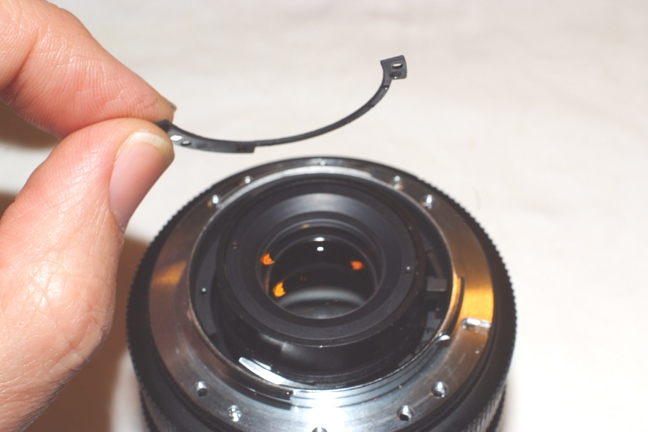

Now it's easy to take it out, notice the shroud is not a complete ring as usual, the other small piece attached with the third black screw, just fell on the table before. |
![]() |

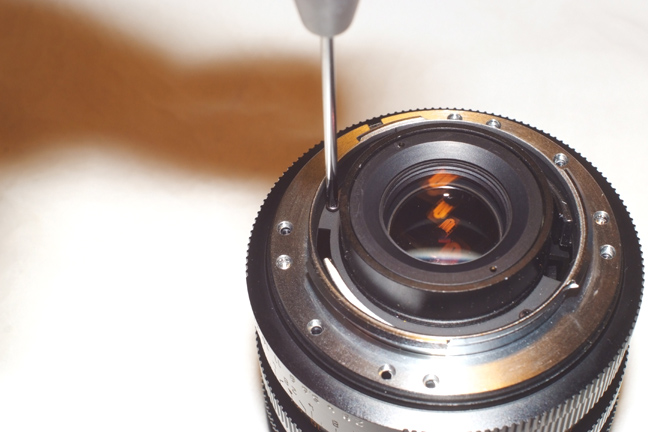

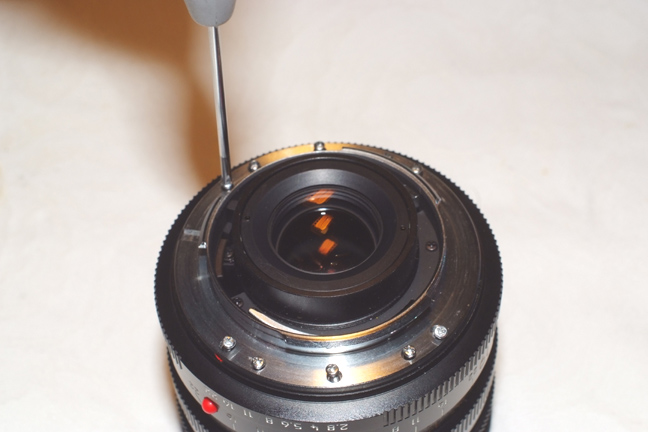

And now, unscrew the bayonet. |
![]() |

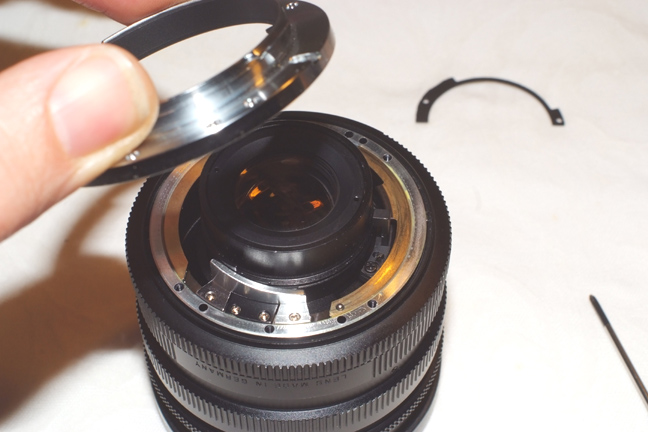

And remove it. If your lens have ROM contacts, they will remain attached to the bayonet. |
![]() |
Find the small steel ball and save it in secure place. |
![]() |

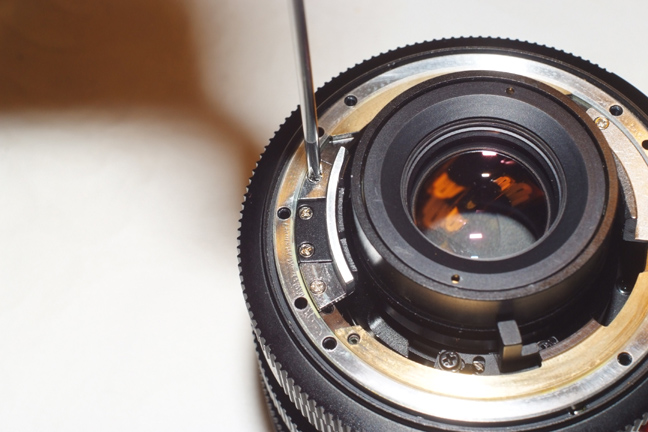

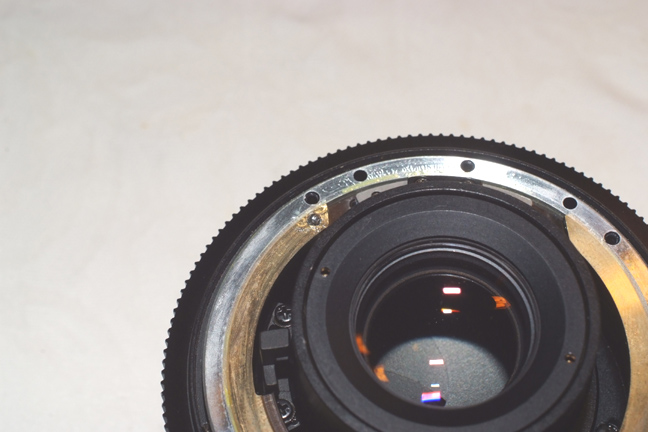

now unscrew and remove the two clear metal cams. If you have a ROM lens, you don't need to remove anything. |
![]() |

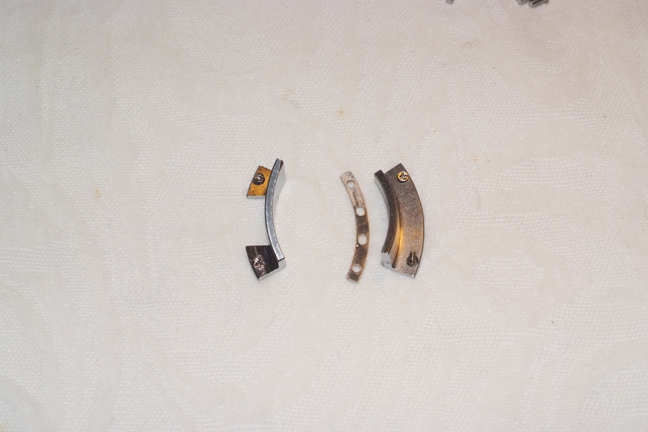

These are the two removed cams and the spacer of one of them. |
![]() |

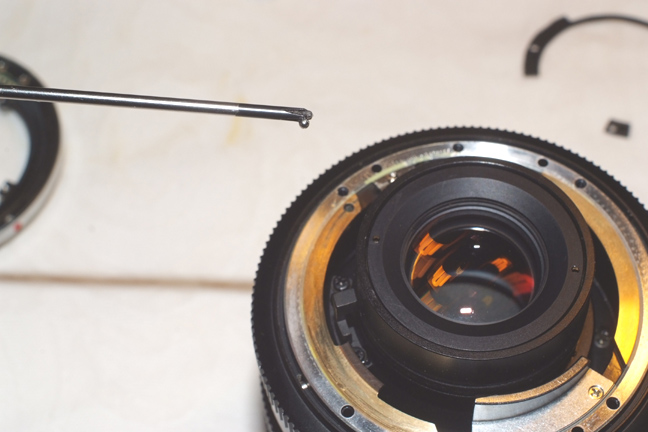

Replace the small bearing ball, first put some grease in its hole and on it. |
![]() |

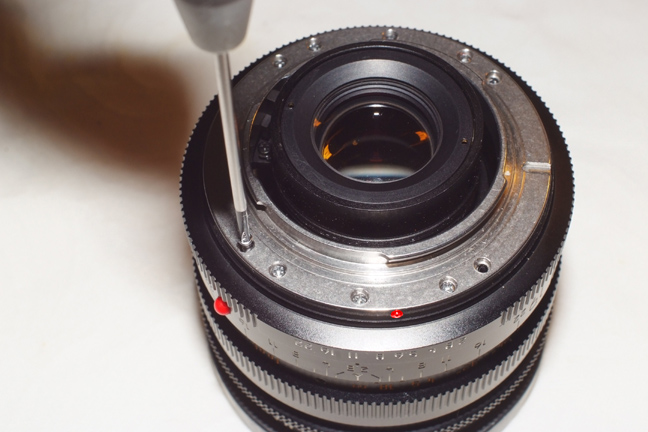

Now we can install the new Leitax bayonet, the red dot goes near the lens scale center. |

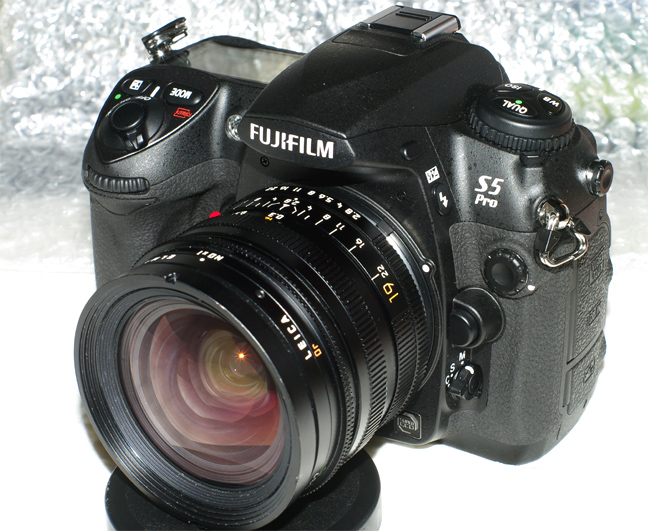

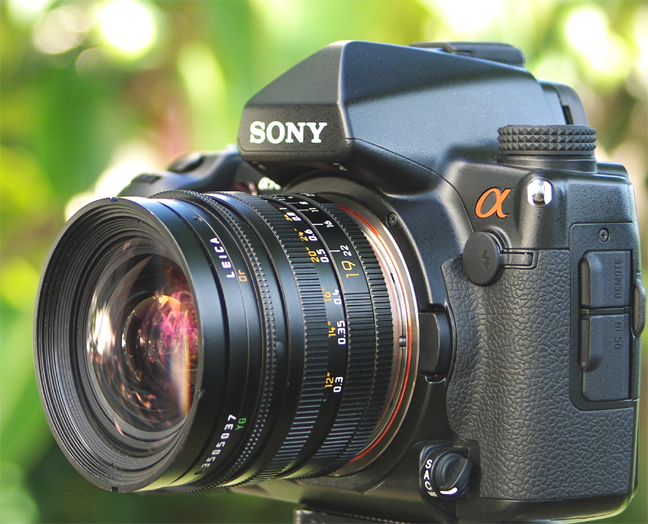

And we can use this lens on APS-sized sensor Nikon cameras, Full Frame Sony and Pentax cameras And, after a bit of shaving, also on Full Frame Nikon cameras. Please take a look below. |
|

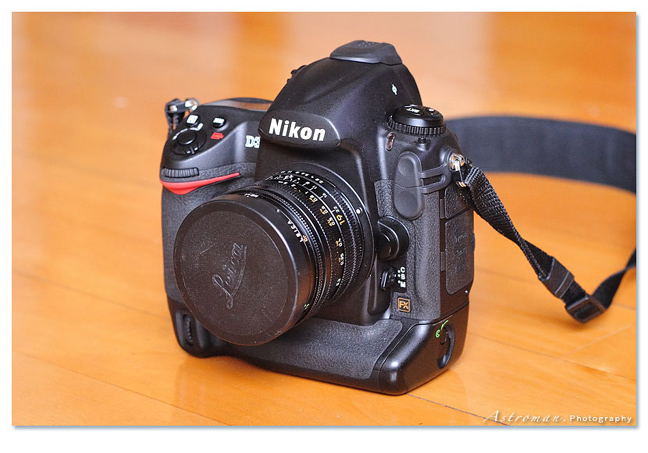

![]() | Our customer and friend Henry made a bit of shaving on this lens to be able to use it on his D3. |

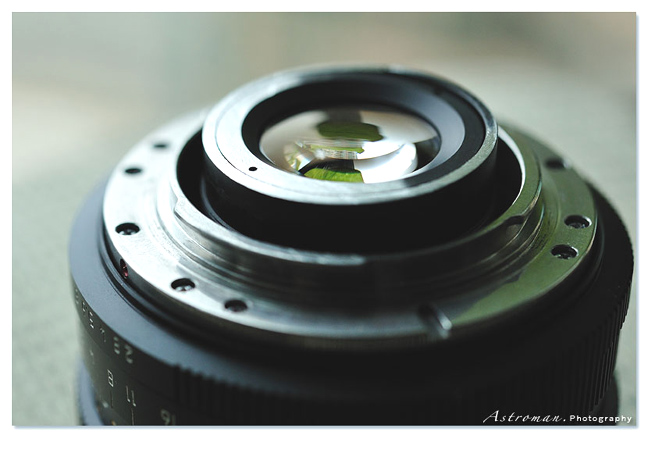

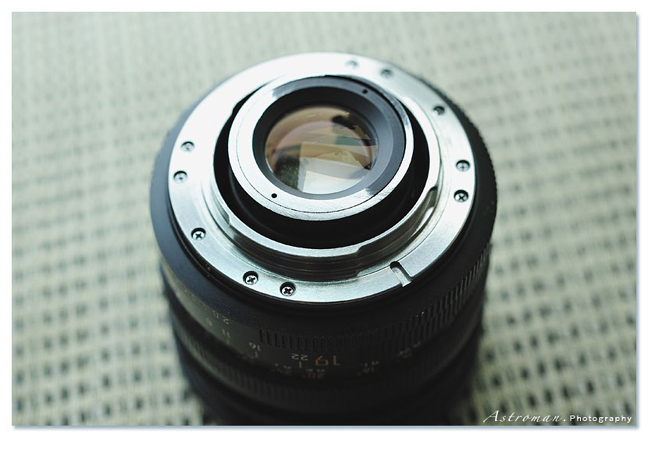

![]() | As you can see, it is just a little bit. |
![]() | Another view of the work. I would recommend you to paint the exposed metal in flat black with the convenient marker from Micro-Tools |

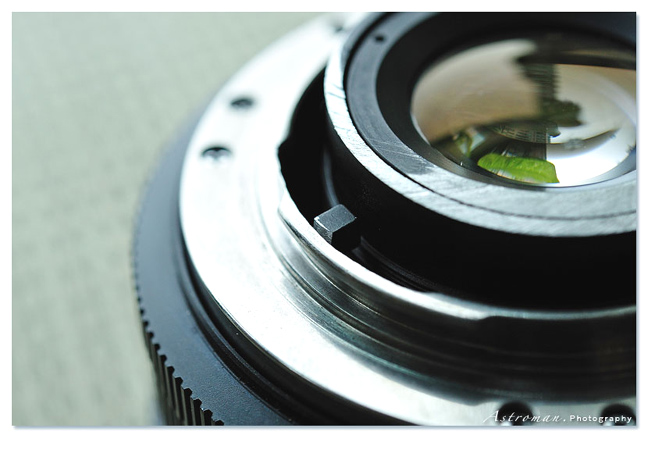

![]() | A closer view. |
![]() | And this is a picture focusing to infinity with his Nikon D3. I would like to thank again Henry for showing us how to use this impressive lens on full frame Nikon cameras. |
![]() | Another great Sample from Henry. The current Elmarit 19/2.8 is working very well on his Nikon D3. |
