Olympus Nikon 1

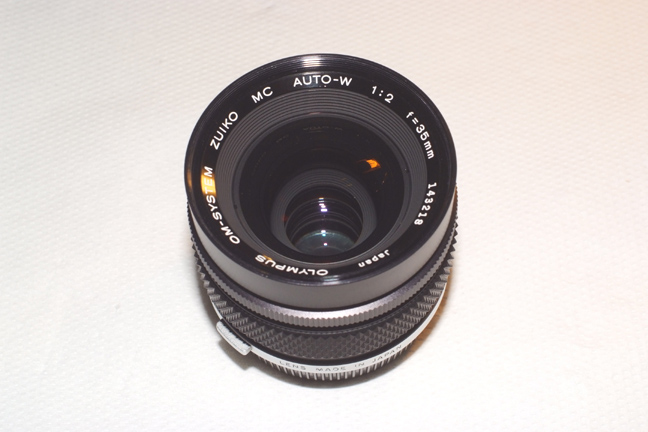

 This is the Olympus OM-System Zuiko 35/2.0
Olympus Nikon 2

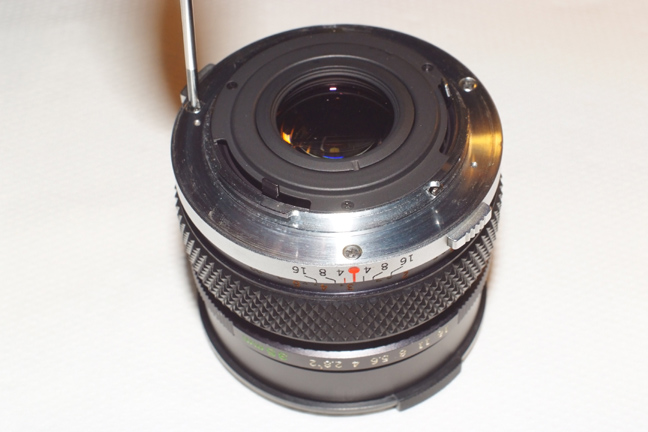

 It has three screws at the bayonet base, which we have to remove.
Olympus Nikon 3

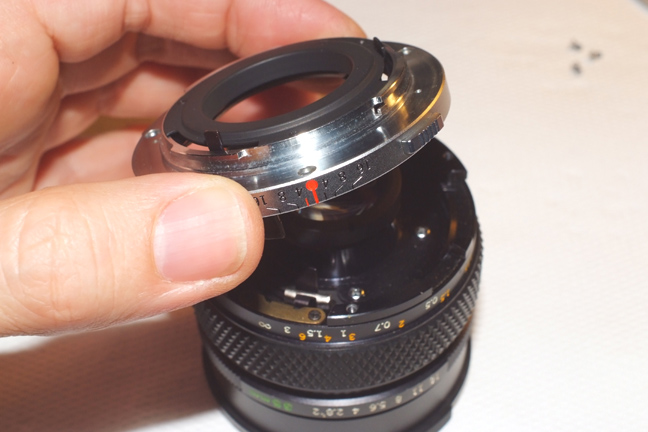

 Just lift the bayonet.
Olympus Nikon 4

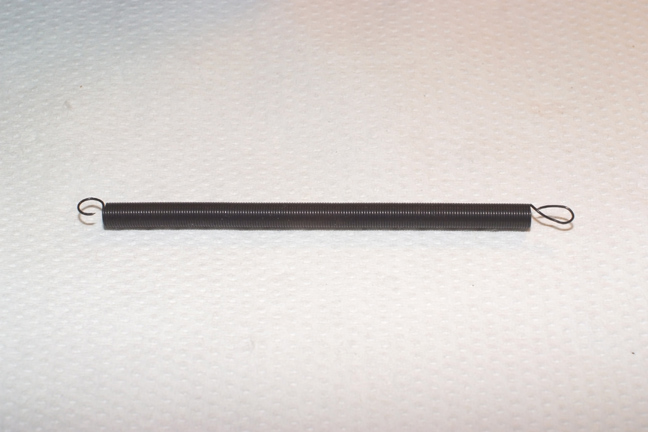

 Now make a spring like this from a piece of 68.50mm.
Olympus Nikon 5

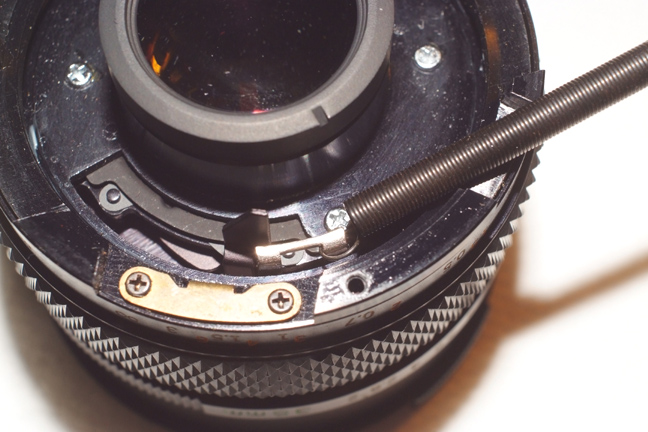

 The hook side goes here.
Olympus Nikon 6

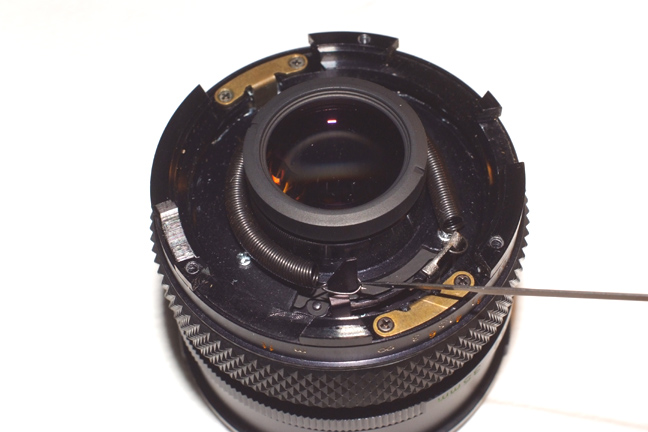

 And the loop side here.
Olympus Nikon 7

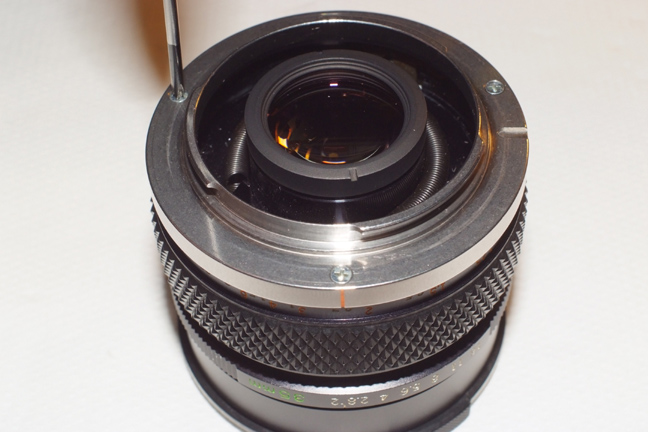

 And we can install the Leitax bayonet with the provided screws.
Olympus Nikon 8

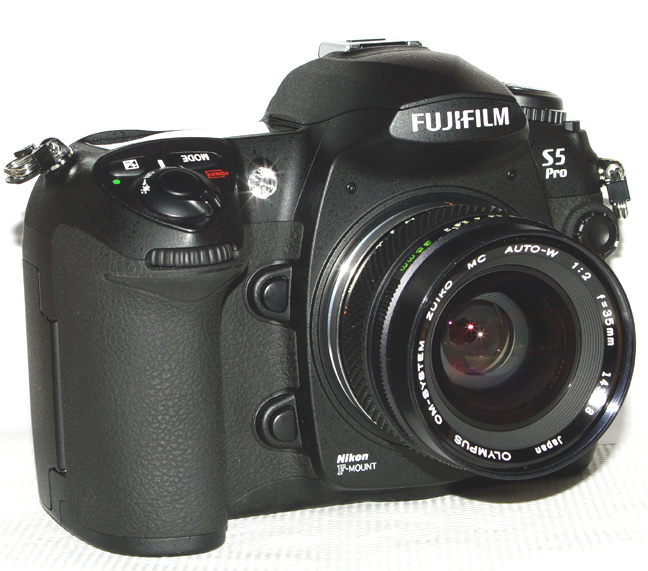

 Ready for all Nikon  F-mount and Pentax cameras.
