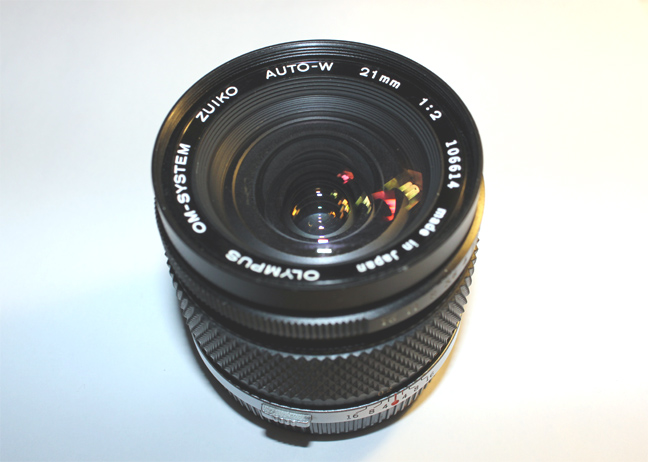

This is the Olympus OM-System Zuiko 21/2.0 lens.

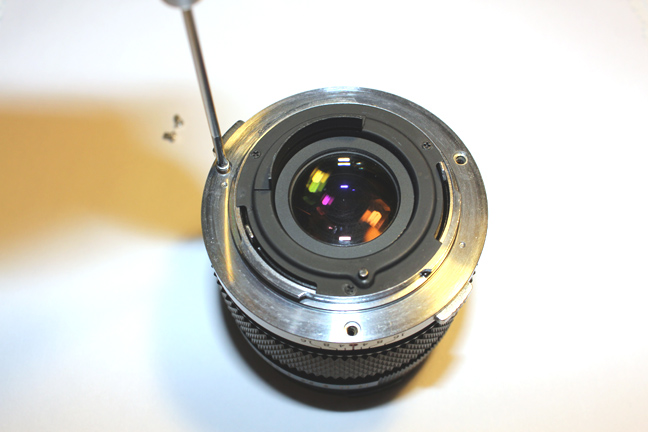

It has three screws at the bayonet base, let's remove them.

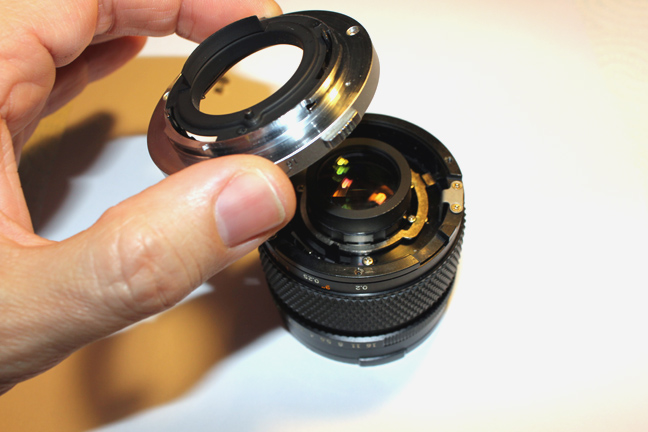

And just lift the mount.

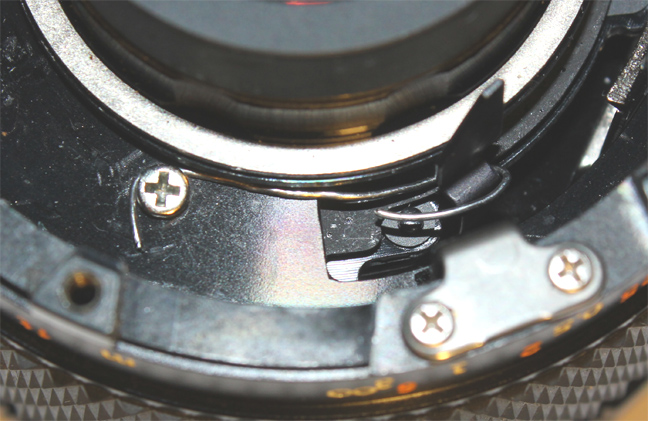

Now make a hook like this from the spring provided with the Leitax mount.

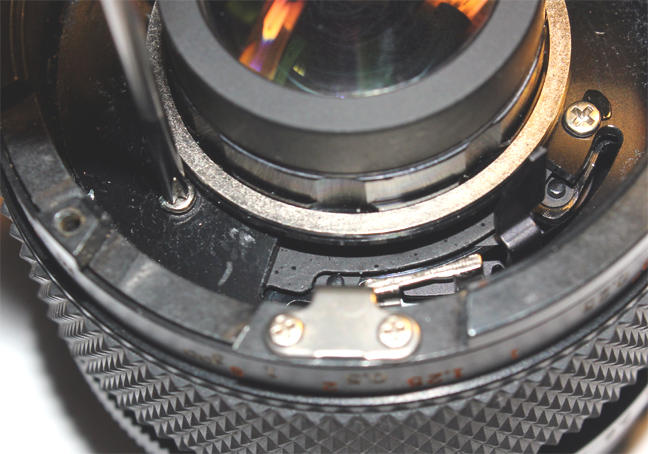

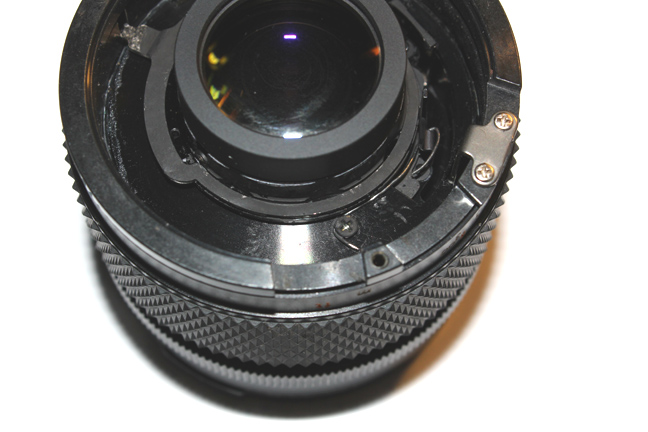

We have to unscrew this screw just the necessary to pass the hook under it.

This way,  I've used a tweezers and the plastic tool.

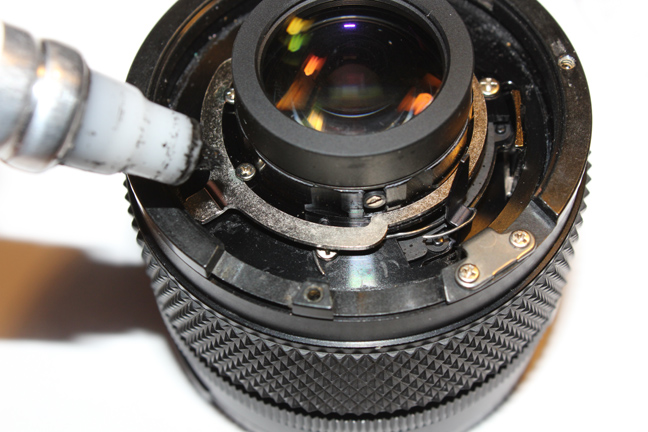

I've painted the bright  metal screws and this  white metal ring with my flat black marker from Micro-tools.

Ready, it is important to check if the iris close until the smaller position, if not, it means  the hook is too long.

It is a good idea to drop a small quantity of nail varnish on that screw, so it will not get loose. Please let the varnish dry completely before mounting the lens on the camera:  the smell must disappear.

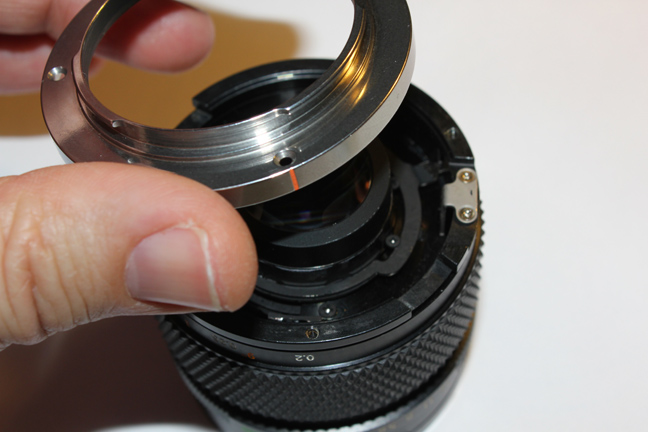

Now install the Leitax mount , the orange line goes in front the scale center.

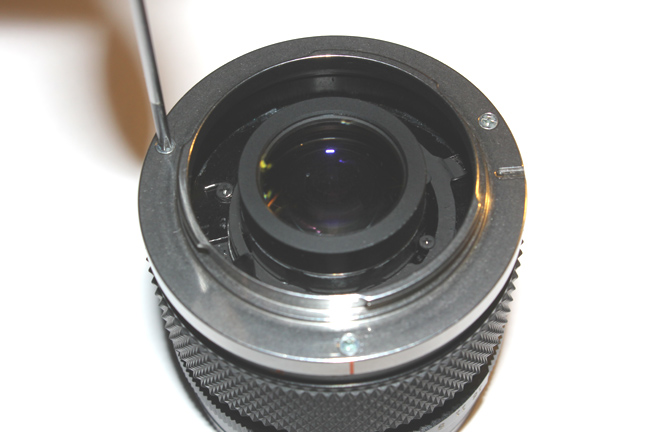

And attach it using the provided screws.

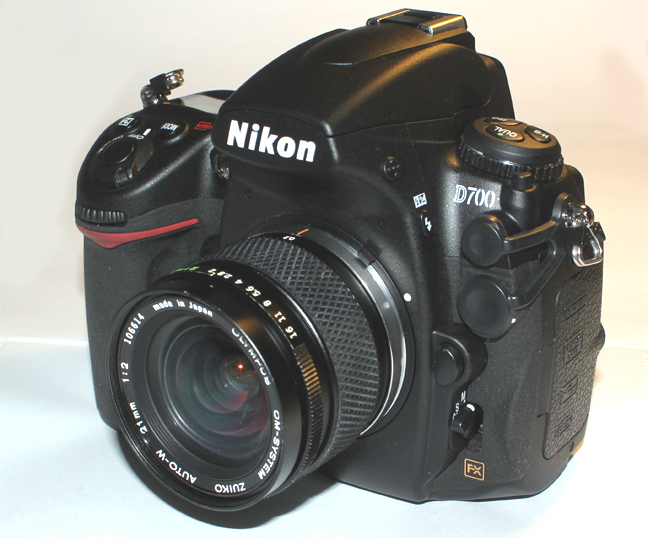

Now you can use this Zuiko lens on any Nikon F-mount or Pentax camera.
