Here you have the instructions for the Zeiss/Contax Mutar III , for the Mutar II , please follow this linklogo
1

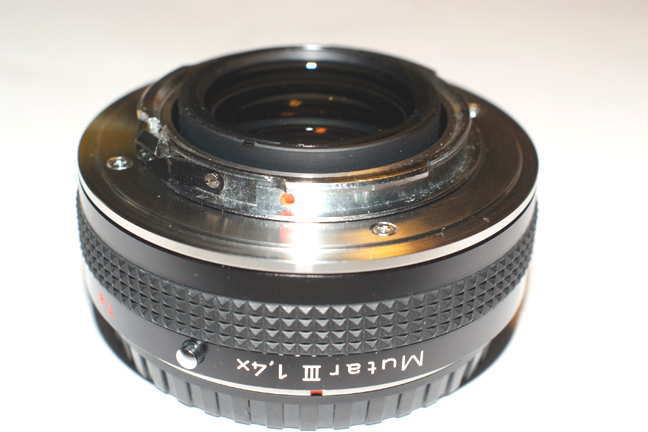

This is the Carl Zeiss Mutar III 1.4x teleconverter.
2

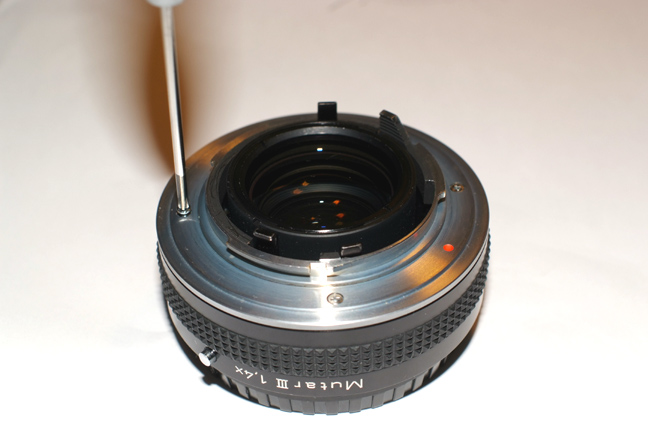

First, unscrew the rear mount.
3

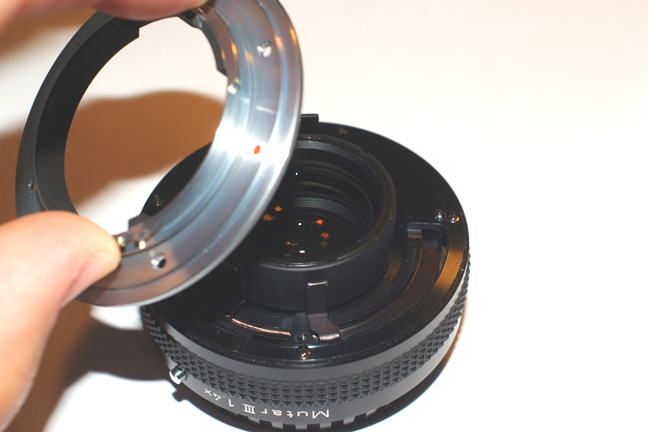

And remove it.
4

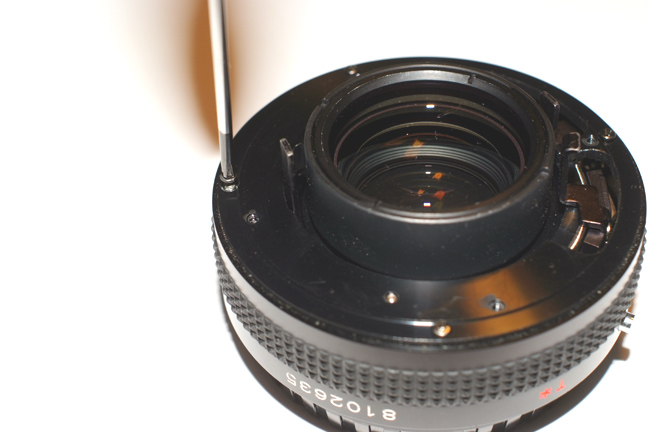

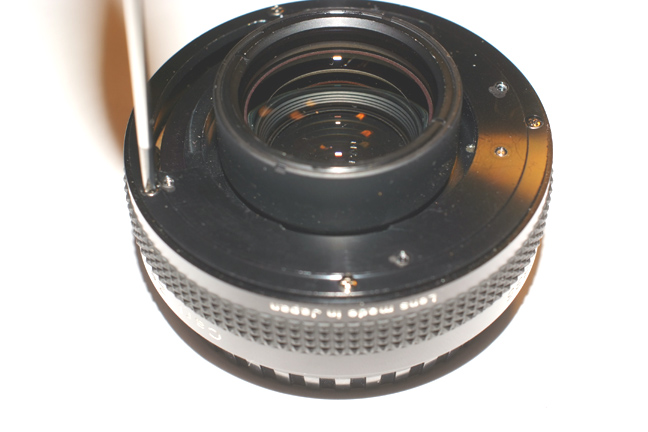

Now remove these four screws.
5

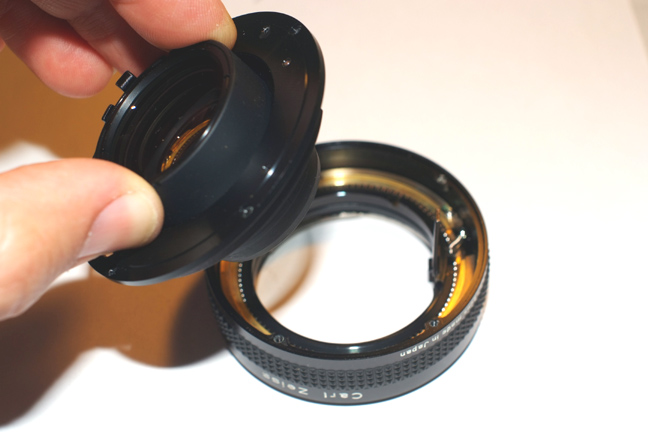

So you can lift the entire optical group.
6

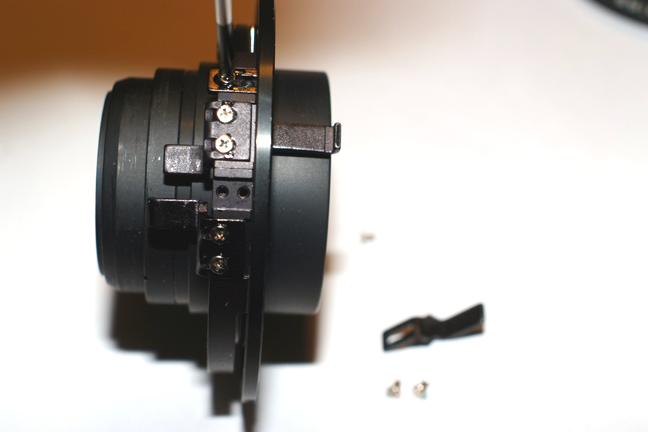

And remove the two levers facing the rear side from it.
7

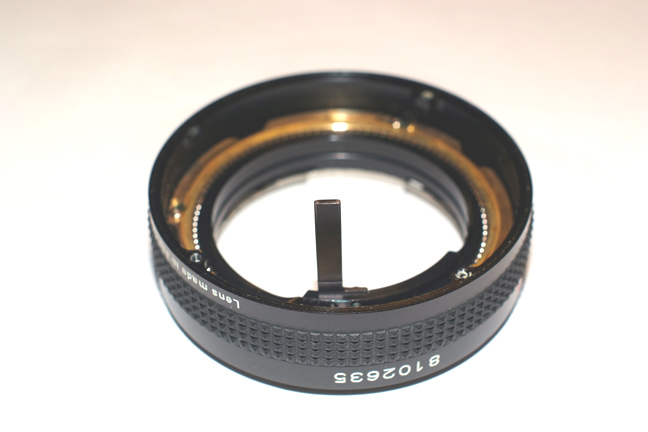

We have to remove this one too.
8

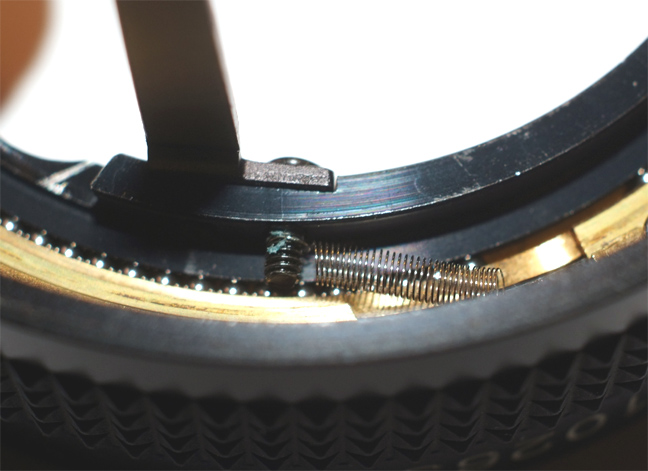

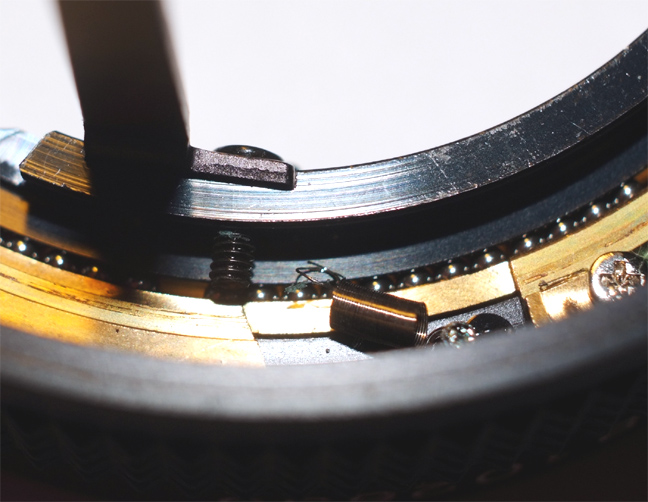

There is a spring that we have to unwrap from this screw.
9















Ok, free.
10

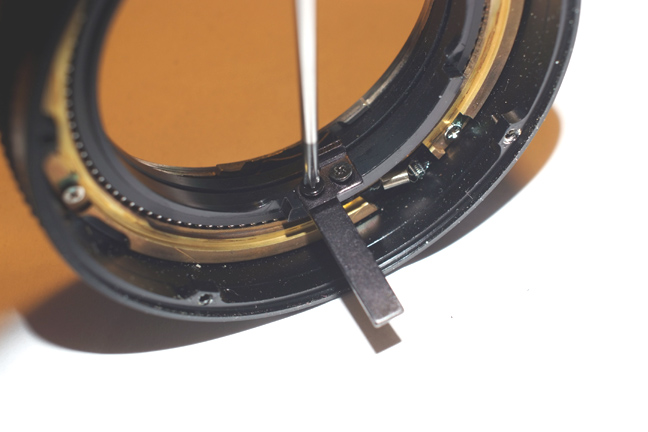

Now we can unscrew that lever.
11

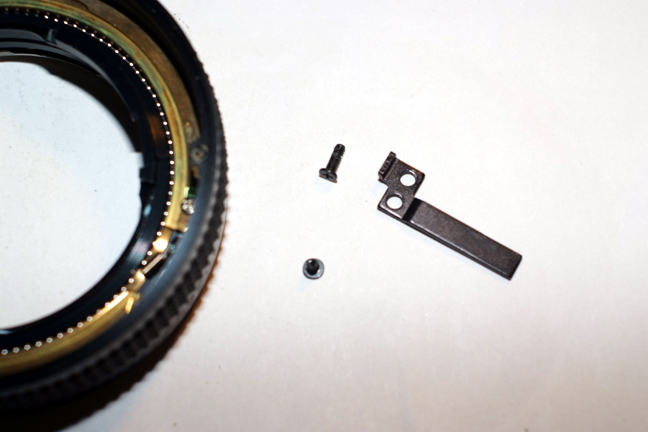

Done, please save all the levers and screws to be able to rebuild this lens to the original condition.
11

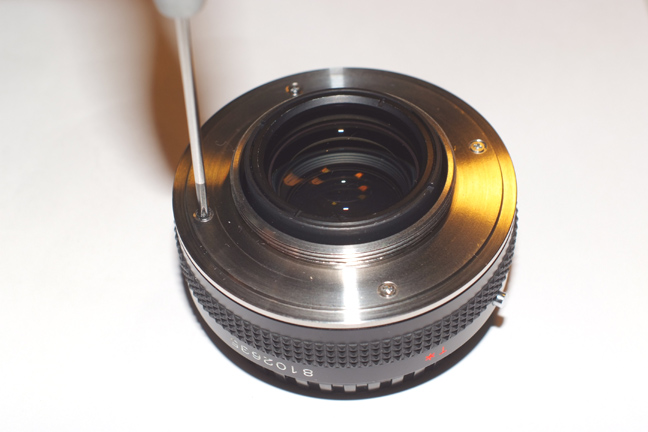

Put the optical group in its place and screw it.
12













Now we can install the Leitax M42 mount .
13

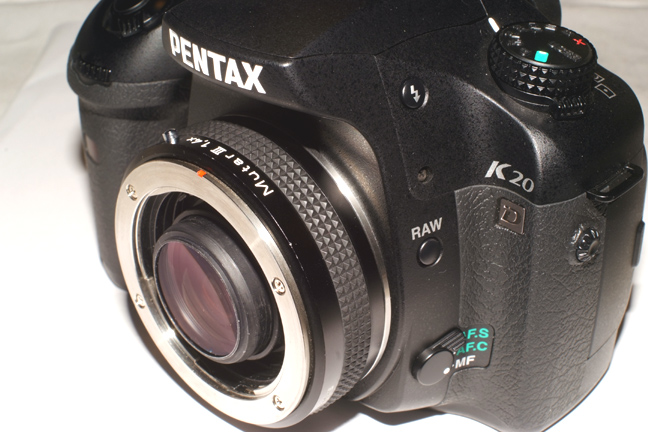

And you can use any M42 adapter for your camera.
14

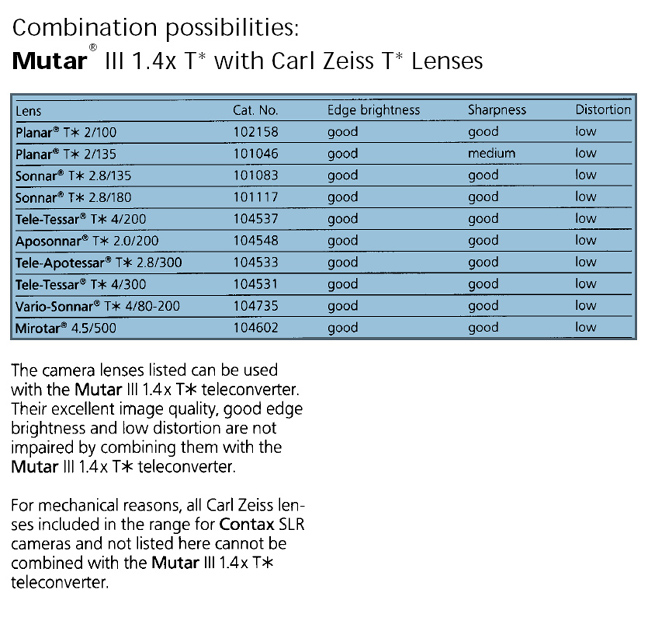

And the Mutar III is ready to work with a selection of Contax lenses.
15















Like the Sonnar 180/2.8.
16

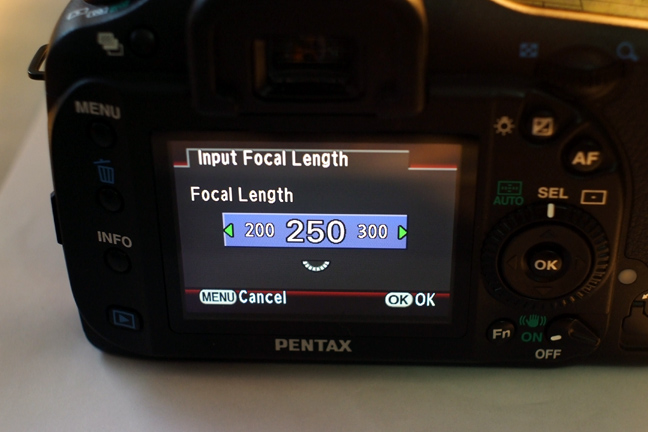

On Pentax cameras, we can set the focal length so the anti shake will work properly
180x1.4=252mm.
list






You can buy this M42 mount for your Mutar III in the Leitax website
