This is the first and original Leitax website page, here we sell replacement mounts for Pentax cameras. If you have a camera from another manufacturer, please use the links above and on the left side.

---

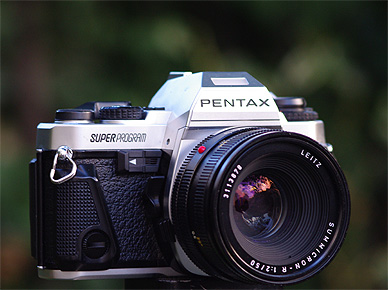

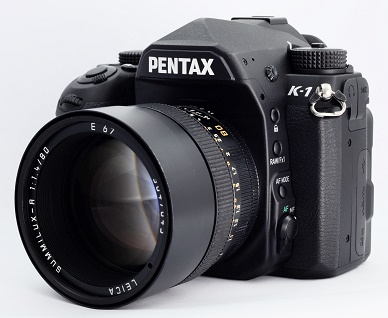

Welcome to Leitax, a site dedicated to make our cameras even more enjoyable. My name is David Llado and I would like to present you a new lens mount designed to use the Leica-R lenses on your camera.

This project started when, at our company, which is located near Barcelona, in Catalonia, Spain, we used a Pentax mount to adapt my camera to a binocular magnifier. I have been a Pentax user for 30 years ( K2, still with me ), and this idea came to my mind, if we could use this mount to adapt more lenses on my Pentax bodies.

After some research, the best candidates were the legacy Leica R-mount lenses, needless to mention the quality of those lenses, and they can be obtained easily from ebay and other sites, also Leica owners would like to use their beloved lenses on modern SLR or DSLR bodies.

Until now, only Canon and Olympus users can shoot with Leica lenses by means of an adapter. These adapters are more convenient than disassemble lenses and change bayonets, but some have problems. Mostly the cheaper ones have uneven plating thickness and fail getting a solid adjustment, and the most important, those are not for Pentax, Nikon or Sigma cameras.

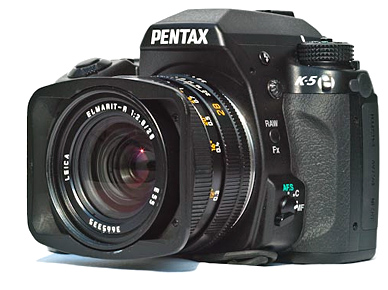

With a Pentax camera and this new bayonet, you get:

-A Leica lens solid on your camera as any Pentax lens.
-Your camera will meter in Av and M mode.
-Focus confirmation in the viewfinder.
-Image stabilization in the newest Pentax bodies.
-Diaphragm ring detents that will "click" like the original bayonet.

I have the K20D, but I think the settings are similar on other models: in the Custom Setting menu, go to "Using aperture ring" and set "permitted". This way, your camera will work and meter in Av mode with adapted lenses.

Of course, the Leica lenses will focus to infinity on Pentax cameras. After checking many models produced for several decades in three countries, we found differences at the point they focus to infinity, so our bayonet is measured to focus to infinity with all of them.

Thus, maybe some units will reach even beyond infinity, in this case turning back the focusing ring just half millimeter is enough.

The conversion is fully reversible and will not damage the lens nor the camera. We have already tried all the Leica lenses in the list, as more models will be checked, we will add them to our instructions section.

CAUTION! The Leica Zoom lenses with ROM contacts are, in general, not suitable for Pentax conversion. Most of models would need a custom and expensive work. I would recommend to find a non ROM model in case you wish a Leica Zoom lens.

- You can see pictures taken with Leica-R lenses with modern digital cameras at the Leitax group at Flickr.

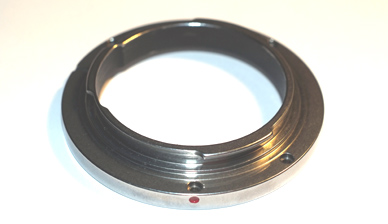

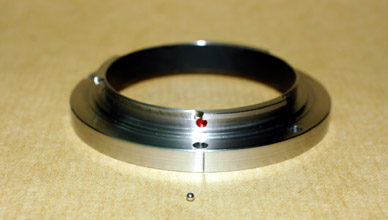

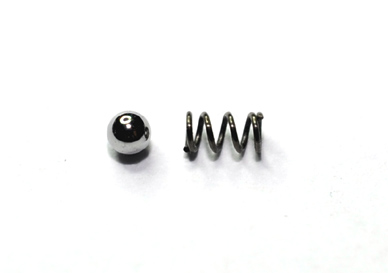

1-- In stock 2-- In stock 3-- In stock	This is the Pentax bayonet for Leitz/Leica -R lenses, also included a spare small bearing ball, just in case yours get lost. It has five holes instead of six, the sixth one would interfere with the locking pin at the camera mount. NEW model with hard stops for the aperture lever Now in three variants: 1-- Full & Half F-stops In stock 2-- Only Full  F-stops  In stock 3-- No F-stops             In stock	68 Euro Variant Full & Half F-stops Only Full F-stops No F-stops

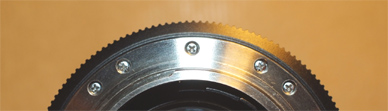

	Special Leica-Pentax bayonet edition for Leica-R lenses with ten holes. It has the standard five holes plus four additional. Spare ball bearing included.	75 Euro

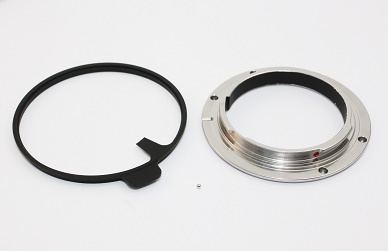

	Special Leica-Pentax bayonet for: --Telyt 400/6.8 and 560/6.8 --Telyt 400/5.6 and 560/5.6  --Visoflex 14167 --Leica bellows --Super-Angulon PC 28/2.8 --PA-Curtagon 35/4	68 Euro

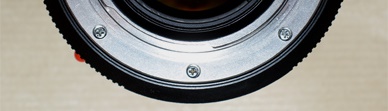

	Special Leica-Pentax mount for: --Apo-Summicron 90/2 --Apo-Summicron 180/2 --1-cam  Leica-R lenses --Vario-Elmar 4/35-70 Spare ball bearing included	72 Euro
	And this one is the Pentax bayonet for a selection of Zeiss/Contax MM lenses, please find more details at the Contax page. Included a spare bearing ball, just in case yours gets lost.	58 Euro
	We had to make an special edition of the Pentax-Contax  bayonet to use these two AE lenses: AE Planar  50/1.7 AE Sonnar 85/2.8 Included a necessary  spring, an useful needle with hook and a spare bearing ball.	Out of Stock 58 Euro
	This is the M42 mount for the Carl Zeiss Contax Planar 85/1.4 MM and Distagon 35/1.4  MM Included a new aperture lever and a spare bearing ball.	72  Euro
	This is the M42 mount for the teleconventers Mutar II and III	62 Euro

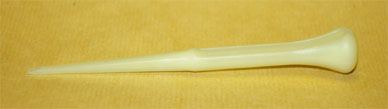

	With certain models, we'll have to manipulate inside the lens, it's not a good place for something metallic. With this plastic tool I don't make any scratches in the Leica or Zeiss lenses.	3 Euro

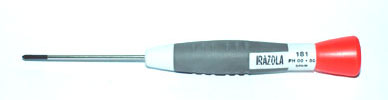

	I use this model for all the Phillips screws in the Leica and Zeiss lenses, it is industrial grade quality made by Irazola, and the design is very good, you can push and turn it firmly with the rotary end and the rubber finish.	5 Euro

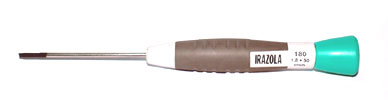

	This one is for the small black screws at the Leica's lens rear shroud. Unfortunately, Irazola doesn't produce a size for the bayonet flat screws founded in older Leica lenses.	5 Euro

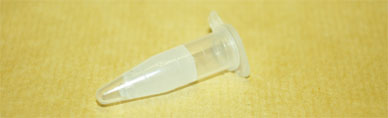

	This silicone grease tube is enough for dozens of bayonet replacements.	1 Euro

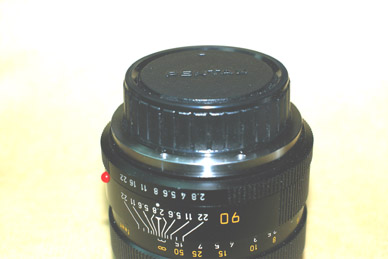

	You may need a generic K rear lens cap.	Out of Stock 2 Euro

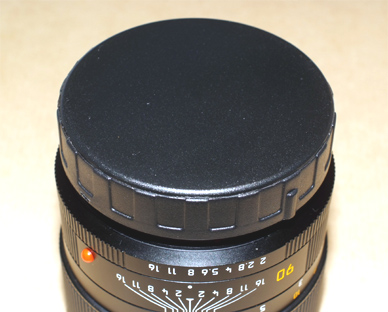

	But, if you want the best, I can offer now the OP/TECH USA Pentax-K cap. -It has a rubber O-Ring that seals the lens from dust and moisture. -The O-ring also forms tight friction, it will avoid losing the cap. -It covers the entire bayonet diameter, providing more protection against blows and scratches.	Out of Stock 9 Euro
	Generic M42 rear cap  for your Contax 85/1.4 MM	2 Euro

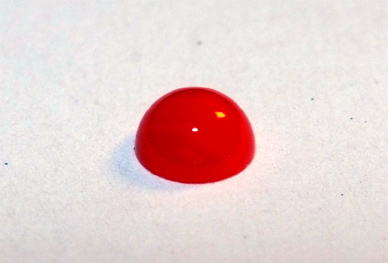

	If your Leica lens has lost the plastic red hemisphere, you can glue a new one. Original Leica spare part.	Original Leica Max. two pieces 3 Euro

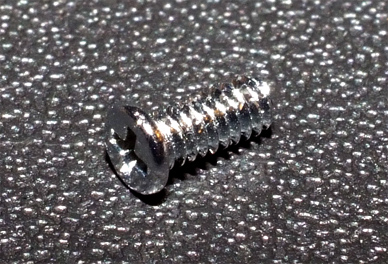

	You can use the same screws that you have removed from your Leica-R lens, but In case you have lost one... This is the standard screw for the Leica lens bayonet. Original Leica spare part. (max. order = two pieces)	Original Leica Max. two pieces 0.25 Euro Non-original Leica without restrictions 0.25 Euro

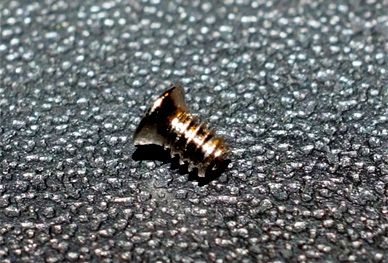

	In case you have lost one... This screw  is for the Leica lenses cams. Original Leica spare part. (max. order = two pieces)	Original Leica Max. two pieces 0.25 Euro

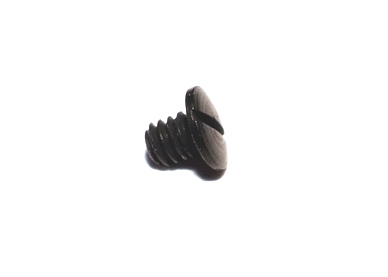

	In case you have lost one... This is the black shroud screw Original Leica spare part. (max order = two pieces)	Original Leica Max. two pieces 0.75 Euro

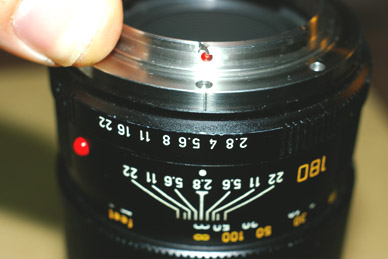

	If you don't feel confident after reading the instructions, send your Leica or Zeiss lens to me. Provided your lens is in the list, we can install a Pentax or Nikon bayonet on it.  Notice this price doesn't include the bayonet nor shipping.	50 Euro
	Extra shipping cost for UPS courier  I will need your phone number for the UPS shipping form.	Destination USA/Canada €15W.Europe €10E.Europe €30Asia €30Australia €30
