Leica-R
to Arri-LPL mount instructions
|
|

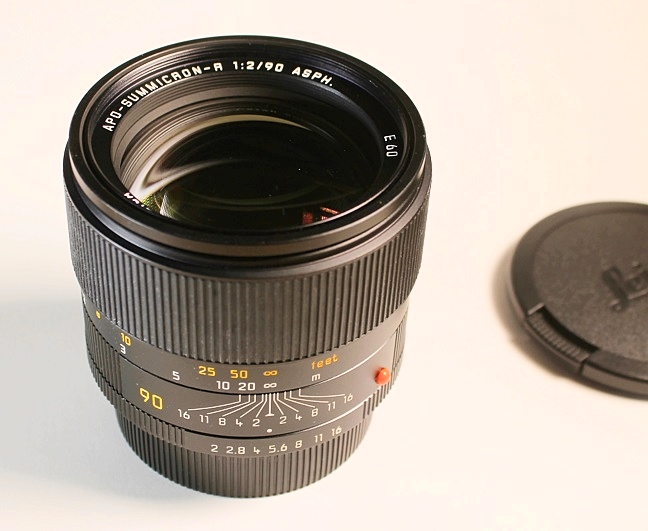

I will use this Apo-Summicron 90/2 for the instructions.
|
|

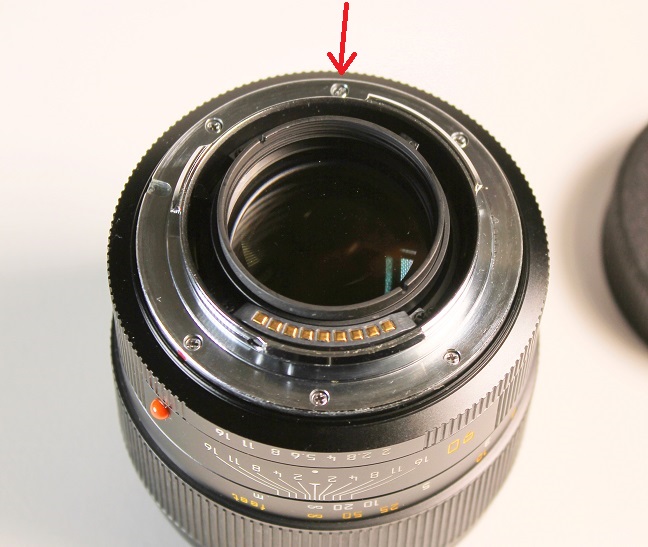

This lens has 6 screws at the original mount. To avoid accidentally displace the mount, you can skip removing the one at the inferior side of the lens, signaled with the arrow . |
|
Most
of the Leica-R lenses with 10 screws at the mount will use these 6
positions anyway for the conversion. Here there is no risk to remove
all 6 screws. Except the: - Vario-Elmar 21-35/3.5-4.0 ASPH - Vario-Elmarit 28-90/2.8-4.5 ASPH that will use the alternative four positions. | |
This

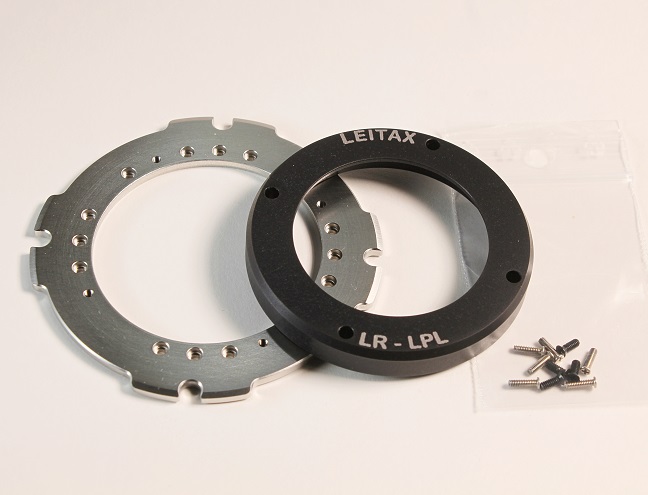

is what you receive from Leitax. Our mount has extra holes to work on all Leica-R models. |
|

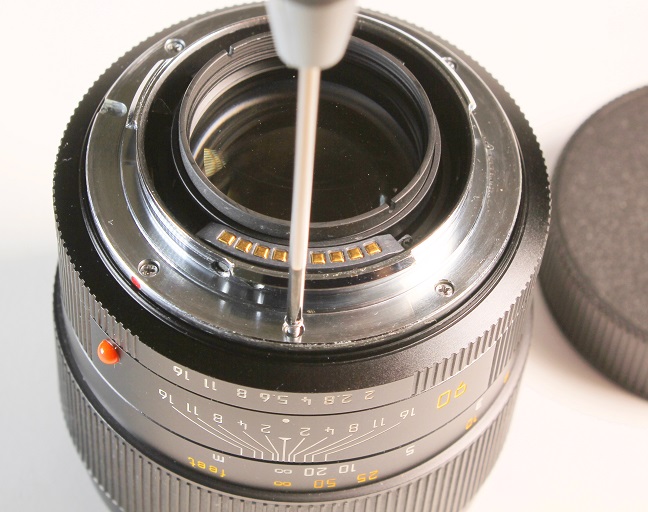

Now we remove the 5 screws ( or 6 if you wish, but be careful and don't displace the mount accidentally). | |

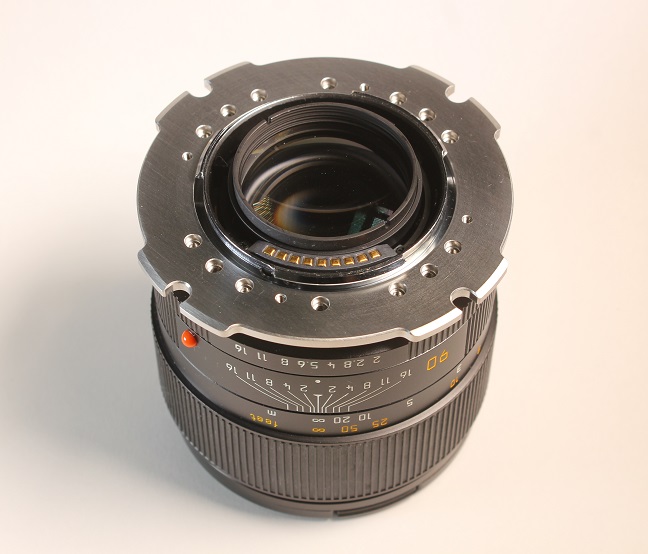

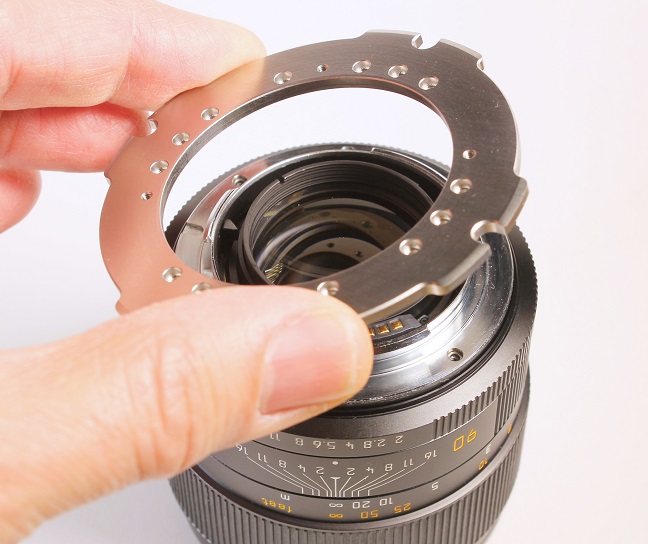

And install the steel plate on top of the original mount. | |
The lonely holes of the Leitax plate are at the top and bottom positions. | |

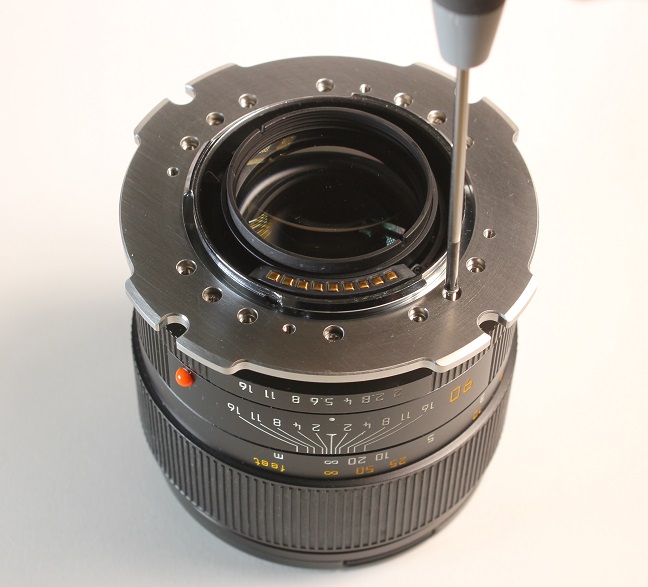

And we can screw the included steel fasteners. | |
And now the black centering ring, its holes have to coincide with the threaded holes of the steel plate. | |
See how convenient is to have the screwdriver magnetized. Just rub a magnet on it. |
|

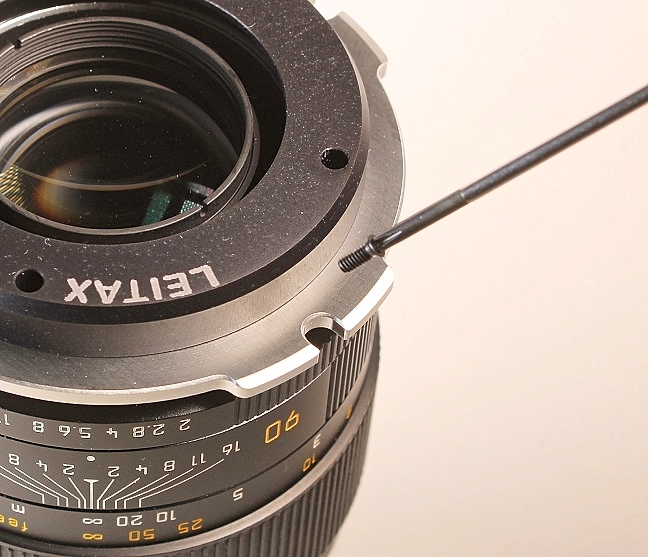

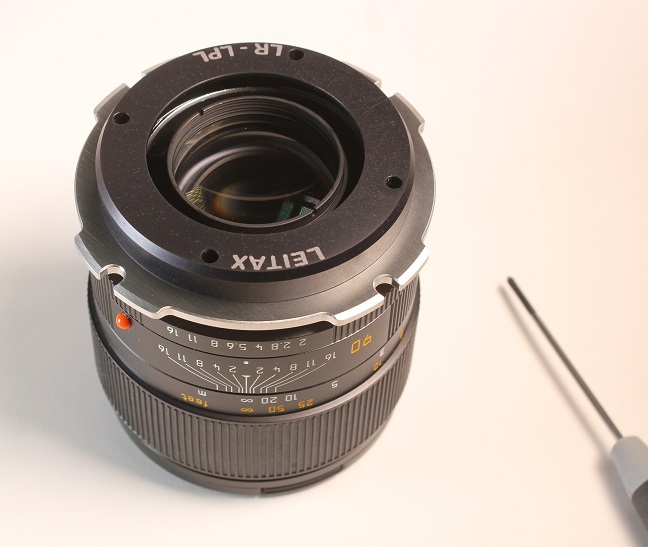

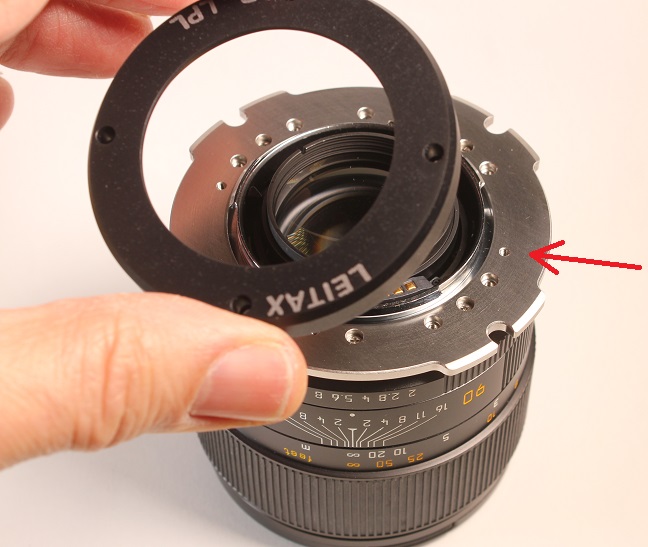

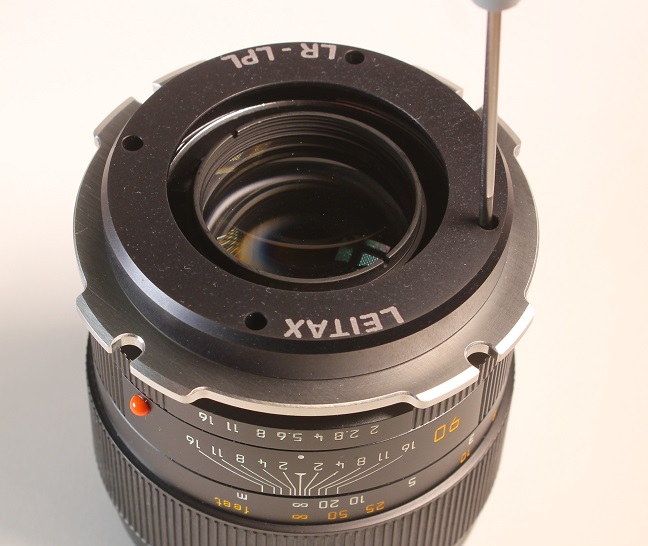

Time to put the black screws to secure this ring. | |

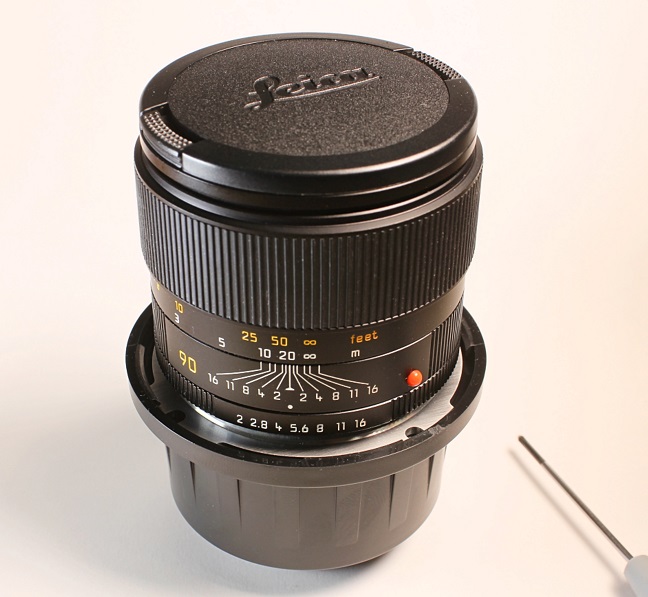

Done. | |
And now this lens can be used on the Arri full frame cameras. | |
