This page will show a simple way to check your Leica-R lens clearance for Sigma cameras. | |

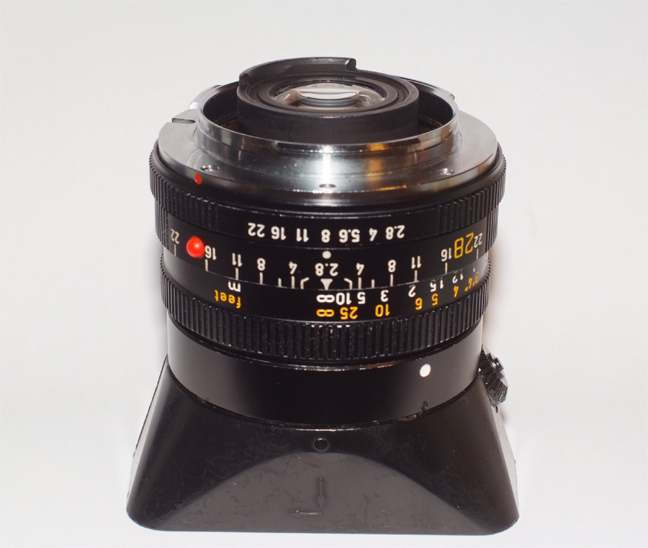

First, you have to turn the focusing ring until infinity, so the rear glass will move to its maximum outside reach . |
|

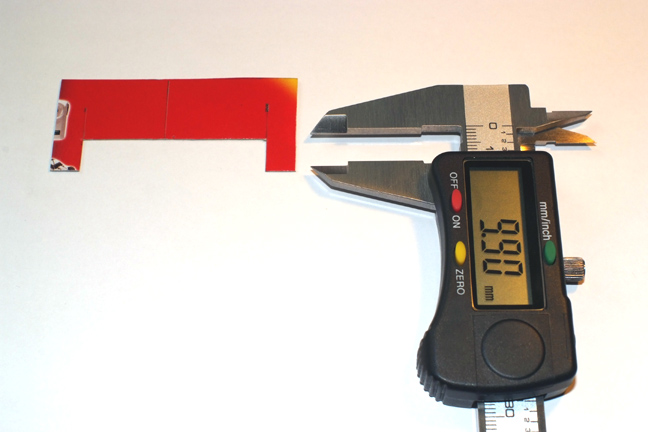

Now, make a kind of cardboard bridge, we don't want anything metallic or too hard near our Leica glass. For my calculations, the "legs" could be 10.2 mm long, but I made them a bit shorter to be on the safe side. |
|

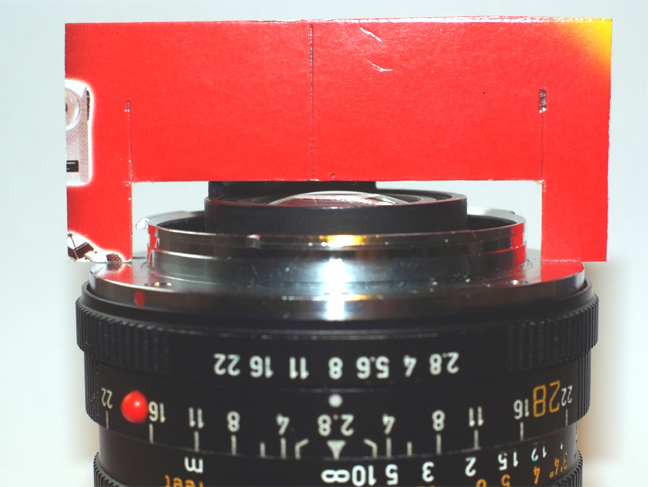

As you can see, the rear Leica lens glass itself will not hit the Sigma's camera body internal dust-protection window. |
|

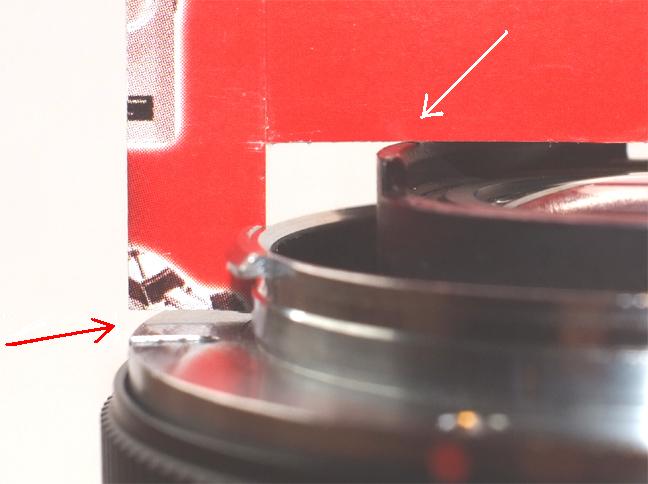

But the Leica lens barrel protective ending will. |
|
Measure how much the rear end of the barrel has to be grounded off and make a mark at the both sides with a needle. |
|
Now we have to protect the lens, I use raw cotton that also will trap metallic particles. |
|
Also I use a piece of paper tape that will make possible to file it easily. |
|
Now, we can start filing until we reach the marks. |
|
When you reach the marks, turn the lens upside down and remove the cotton protection. |
|

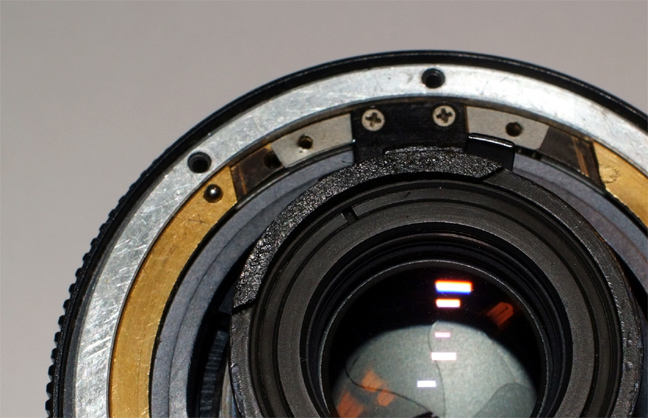

Remove the few metal particles that trespassed the protection. I use our plastic tool wrapped with cotton. |
|

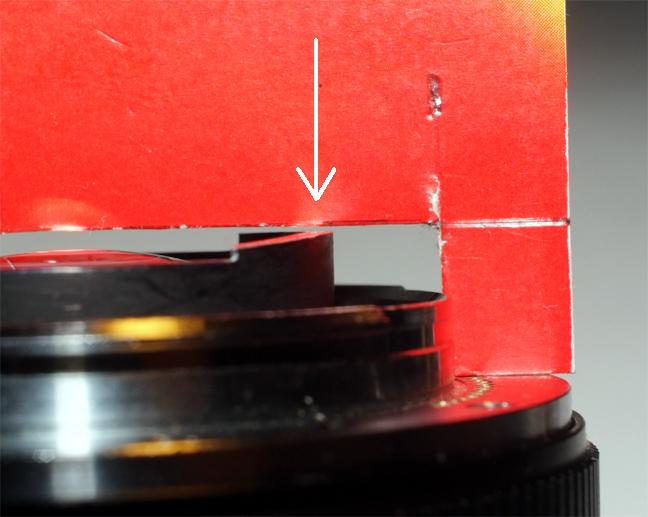

Now check the result with your cardboard bridge. |
|

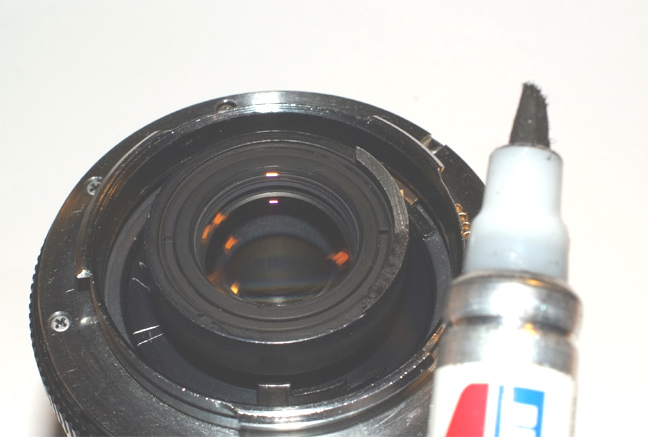

I painted the exposed metal with my flat black marker from Micro-Tools. |
|
Painted, now we can remove the Leica bayonet and install the Leica-Sigma one. |
|

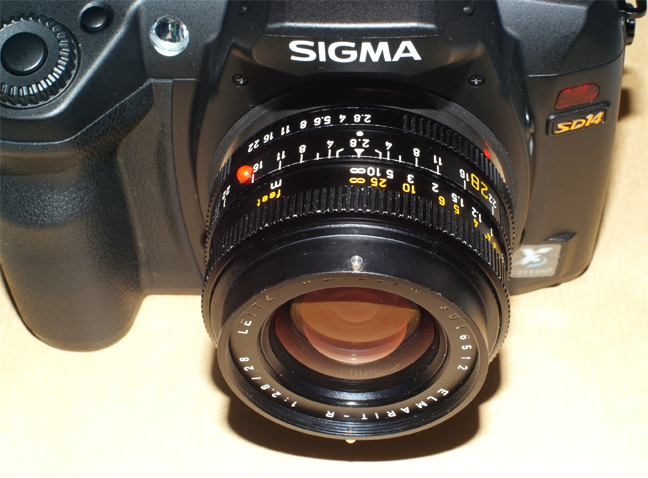

And you can see in this picture the Elmarit 28/2.8 reaching infinity without any problem on Sigma cameras. |
|
